AC/DC Clamp Current Meter 99 groups Data Storage ETCR6800D 600V Line Voltage

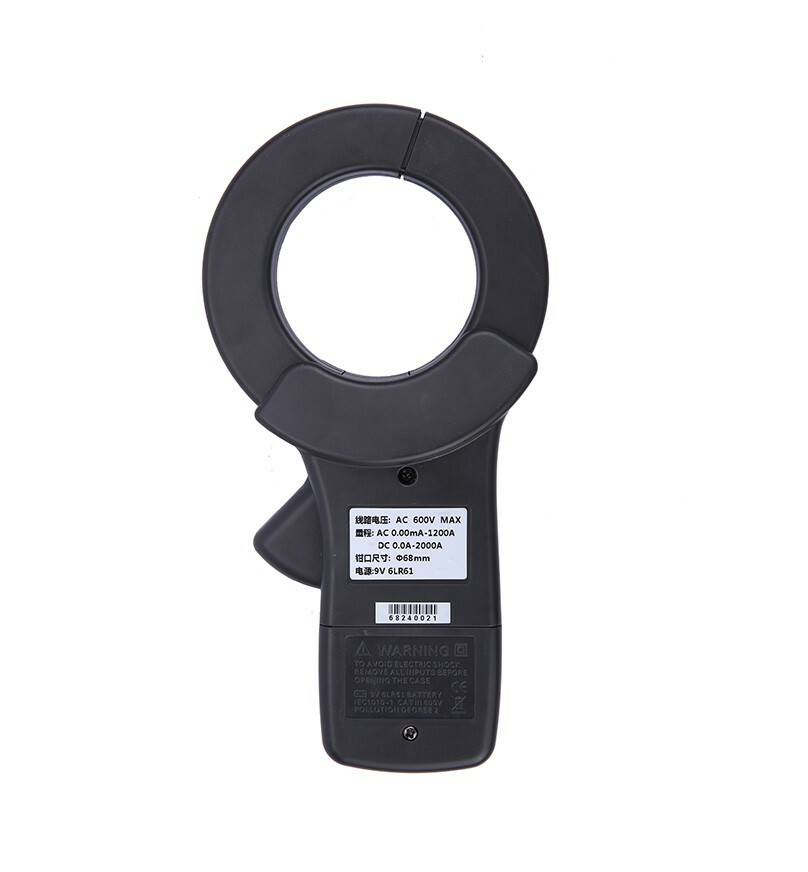

AC/DC Clamp Current Meter 99 groups Data Storage ETCR6800D 600V Line Voltage Instruction: ETCR6800D AC/DC Clamp Current Meter suitable for measuring AC/DC current below 600V, range: AC0.0A~1500A，DC0.0A~2000A, CT size: Φ68mm, the iron core adopts magnetic shielding technology, strong anti-interference ability, make sure the accuracy and stability of measurement. adopt non-contact current measurement, safe and simple operation.The instrument is small size, high accuracy, performance stable and function perfect, which is one of the necessary tools for electrician safety inspection and maintenance. The instrument with data hold, data storage and other functions, can store 99 groups of data, the instrument connect computer by RS232 interface, stotage data can be uploaded to the computer, easy to read, analysis, save, print and so on. Product Main Function 1. Measurement of AC current , Range：0.0A~1500A 2. Measurement of DC current , Range: 0.0A~2000A 3. Data Storage: 99 groups 4. Line Voltage: below 600V 5. CT Size: Φ68mm Specification: Power Supply 9V（6LR61）(not included) CT Size Φ68mm LCD Size 32mm×15mm Range AC 0.0A～1500A DC 0.0A～2000A Resolution AC/DC 0.1A Accuracy ±2%rdg±3dgt(23℃±5℃，below 75%rh) Data Storage 99 groups Data Upload Function Storage data can be uploaded to the computer, save and print. Automatic Shutdown 5 Minutes after power on will shutdown automatically without any operation Power Consumption ≤30mA, continuous working 15 hours Working Environment -10℃~50℃；20%rh~80%rh Store Environment -10℃~60℃；below 70%rh Measurement Method Clamp CT，Non-contact measurement Frequency Respond AC：45Hz～400Hz Data Hold Data hold function: "DH" symbol display Overflow Display Exceed measure range overflow function: "OLA" symbol display Polarity Indication In DC current test auto identified and display“—” symbol Line Voltage below 600V circuit test Shift Automatic Measure Time 0.5 second/times Voltage Alarm When battery voltage lower than 7.2V, low battery voltage symbol will display Insulation Strengh AC 3700V/rms (Between iron core and shell) Suitable Safe Standard IEC1010-1、IEC1010-2-032、Pollution 2、CAT Ⅲ(600V) Meter Weight 500g Meter Dimension 215mm(H)×65mm(W)×34mm(H) Packing: Package Outer Package Carton Inner Package Cloth bag Accessory Meter 1 PCS Communication Cable 1 PCS CD 1 COPY Cloth Bag 1 PCS Manual 1 PCS Certificate 1 PCS Warranty Card 1 PCS
